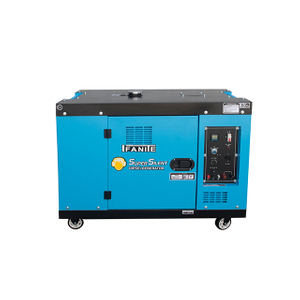

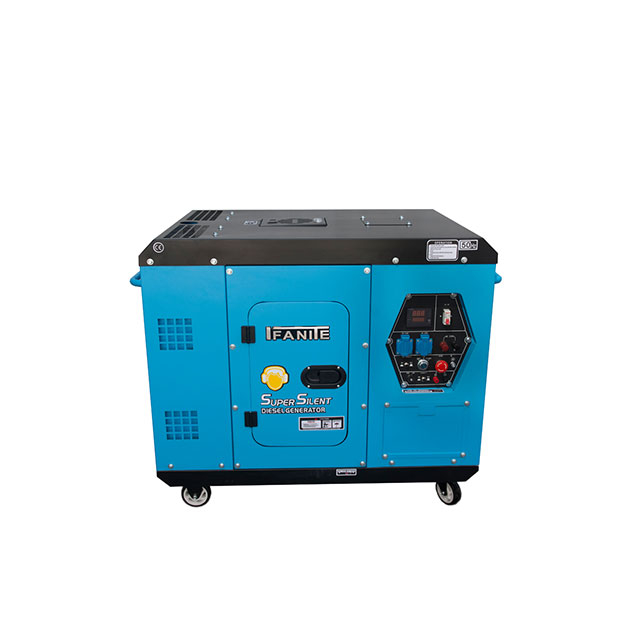

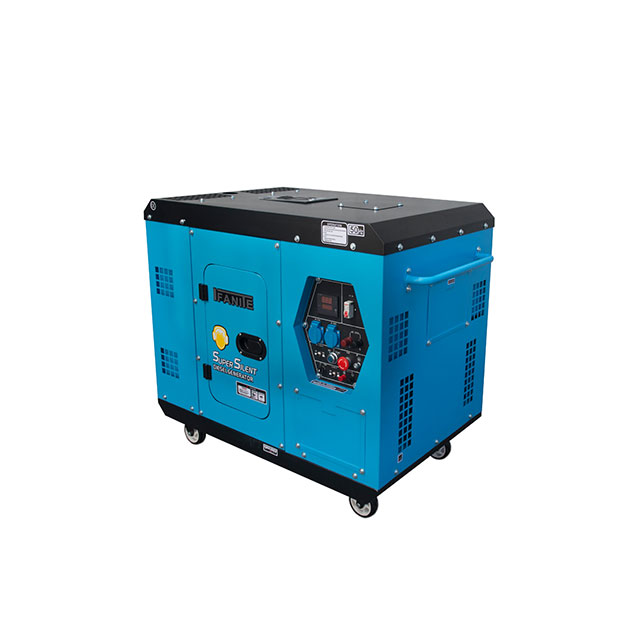

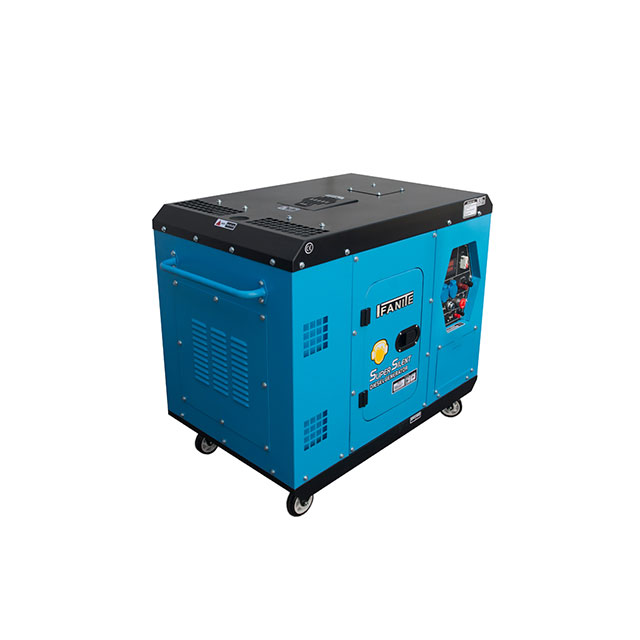

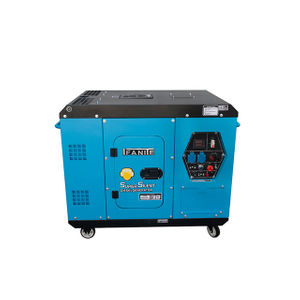

10KW DIESEL GENERATOR

Product Description

17000 Series Diesel Generator

Technical Data

	Engine model	1103FE	1103FE	1103FE	1103FE
Engine	Type	1 cylinder，in line ，4 stroke，air cooled	1 cylinder，in line ，4 stroke，air cooled	1 cylinder，in line ，4 stroke，air cooled	1 cylinder，in line ，4 stroke，air cooled
	Bore *stroke mm	103*88	103*88	103*88	103*88
	Displacement ml	733	733	733	733
	compression ratio	19:1	19:1	19:1	19:1
	engine power(kw/rpm)	11/3000 12/3600	11/3000 12/3600	11/3000 12/3600	11/3000 12/3600
	oil type	Above CD SAE 10W 30 15W 40	Above CD SAE 10W 30 15W 40	Above CD SAE 10W 30 15W 40	Above CD SAE 10W 30 15W 40
	Start type	12V electric start	12V electric start	12V electric start	12V electric start
	starter capacity	12V 1.6KW	12V 1.6KW	12V 1.6KW	12V 1.6KW
	charger capacity	12V 3A	12V 3A	12V 3A	12V 3A
	Battery capacity	12V 36AH	12V 36AH	12V 36AH	12V 36AH
	fuel consumption(g/kw.h)	247	247	247	247
	diesel type	Diesel 0# or 10# 35#	Diesel 0# or 10# 35#	Diesel 0# or 10# 35#	Diesel 0# or 10# 35#
	fuel tank capacity (L)	25	25	25	25
	Keep running time(hour)	8	8	8	8

FAQ

What is your warranty period?

Our warranty period is 1 year or 1000 running hours , whichever comes first (excep the damage about spare parts of genset caused by incorrect man-made operation)
Can you use our logo?

Yes, for mass orders , we can use customer's logo.
Is there a MOQ for your generator?

No, we can accept 1 pcs for sample making for your testing and sample price will rise 10%-30% different base on different model.
What is your payment terms?

T/T 30% advance payment, the balance 70% shall be paid before shipping .
L/C irrevocable / LC at sight.
