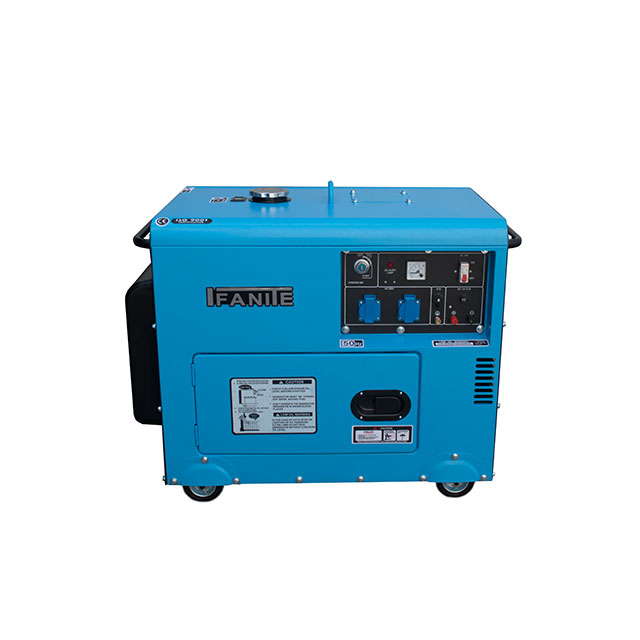

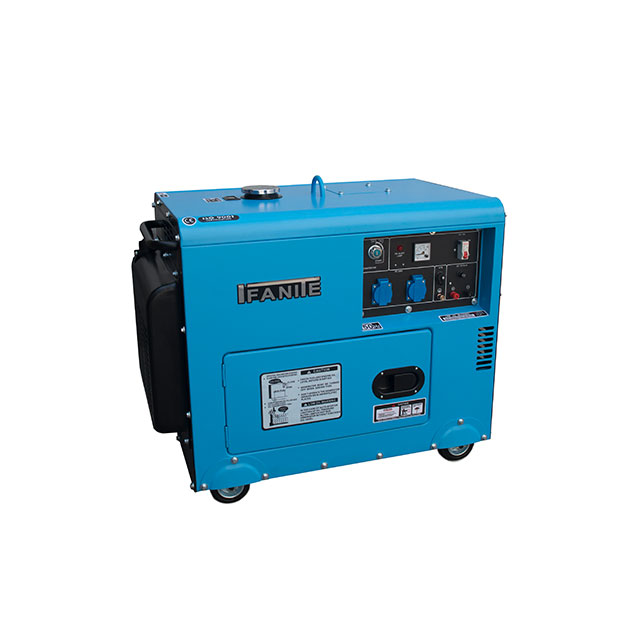

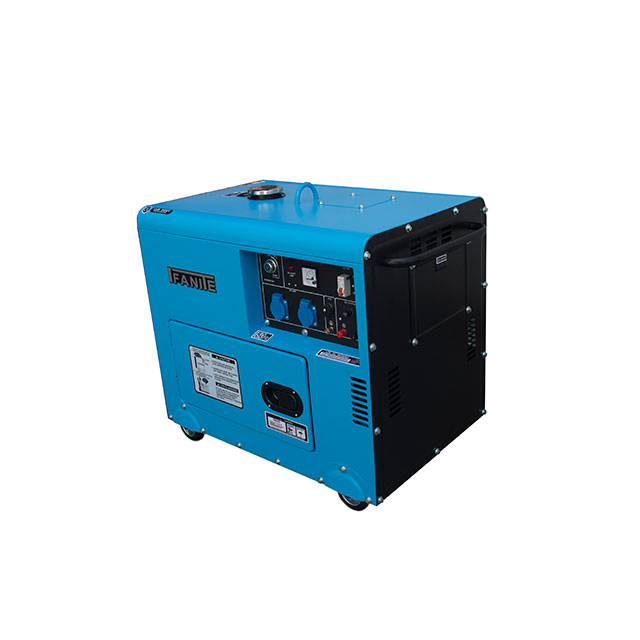

5KW DIESEL GENERATOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

6500 Series Diesel generator

Technical Data

	Model NO.	IF6500X (Open type )	IF6500E (Open type )	IF6500E3 (Open type )	IF6500T (Silent type)	IF6500T3 (Silent type)
Generator set	Rated frequency(Hz)	50/60	50/60	50/60	50/60	50/60
	Rated voltage(V)	220V	220V	380V	220V	220V
	Rated current(A)	22.7A	22.7A	7.5A	22.7A	7.5A
	Rated output power(kW)	4.5/5.0	4.5/5.0	4.5/5.0	4.5/5.0	4.5/5.0
	Max output power (kw)	5 /5.5	5 /5.5	5 /5.5	5 /5.5	5 /5.5
	Rated rotation speed(rpm)	3000/3600	3000/3600	3000/3600	3000/3600	3000/3600
	DC output	12V 8.3A	12V 8.3A	12V 8.3A	12V 8.3A	12V 8.3A
	Power factor(cosφ)	1	1	1	1	1
	Phase number	Single phase	Single phase	3 phase	Single phase	Single phase
	Noise level[dB(A)@7m]	85	85	85	70	70
	Overall dimension(LWH)[mm]	720X492X655	720X492X655	720X492X655	950X560X750	950X560X750
	Net weight(kg)	100	100	100	160	160

	Engine type	186FA	186FAE	186FAE	186FAE	186FAE
Engine	Structure type	Single cylinder, in-lined,4-stroke, air cooled, direct injection	Single cylinder, in-lined,4-stroke, air cooled, direct injection	Single cylinder, in-lined,4-stroke, air cooled, direct injection	Single cylinder, in-lined,4-stroke, air cooled, direct injection	Single cylinder, in-lined,4-stroke, air cooled, direct injection
	Bore*stroke[mm(in)]	86*72	86*72	86*72	86*72	86*72
	Displacement[ml(cu. in)]	418	418	418	418	418
	Engine speed(rpm)	3000/3600	3000/3600	3000/3600	3000/3600	3000/3600
	Compression ratio	19:1	19:1	19:1	19:1	19:1
	Rated output power[kW/rpm]	5.7/3000 , 6.3/3600	5.7/3000 , 6.3/3600	5.7/3000 , 6.3/3600	5.7/3000 , 6.3/3600	5.7/3000 , 6.3/3600
	Lubrication system	Pressure splashed	Pressure splashed	Pressure splashed	Pressure splashed	Pressure splashed
	Lube oil brand	Above CD SAE 10W-30,15W-40	Above CD SAE 10W-30,15W-40	Above CD SAE 10W-30,15W-40	Above CD SAE 10W-30,15W-40	Above CD SAE 10W-30,15W-40
	Starting system	Recoil starter	12 V Electric starter	12 V Electric starter	12 V Electric starter	12 V Electric starter
	Starting motor capacity	/	12V 0.8KW	12V 0.8KW	12V 0.8KW	12V 0.8KW
	Charging generator capacity	/	12V 3A	12V 3A	12V 3A	12V 3A
	Battery capacity	/	12V 32A	12V 32A	12V 32A	12V 32A
	Fuel consumption rate[g/kW.h]	3000rpm: 275 , 3600rpm: 281	3000rpm: 275 , 3600rpm: 281	3000rpm: 275 , 3600rpm: 281	3000rpm: 275 , 3600rpm: 281	3000rpm: 275 , 3600rpm: 281
	Fuel type	Diesel 0#(summer)or-10#(winter),-35#(cold)	Diesel 0#(summer)or-10#(winter),-35#(cold)	Diesel 0#(summer)or-10#(winter),-35#(cold)	Diesel 0#(summer)or-10#(winter),-35#(cold)	Diesel 0#(summer)or-10#(winter),-35#(cold)
	Fuel tank capacity(L)	15	15	15	15	15
	Continuous running time(H)	8	8	8	8	8

FAQ

What is your warranty period?

Our warranty period is 1 year or 1000 running hours , whichever comes first (excep the damage about spare parts of genset caused by incorrect man-made operation)
Can you use our logo?

Yes, for mass orders , we can use customer's logo.
Is there a MOQ for your generator?

No, we can accept 1 pcs for sample making for your testing and sample price will rise 10%-30% different base on different model.
What is your payment terms?

T/T 30% advance payment, the balance 70% shall be paid before shipping .
L/C irrevocable / LC at sight.
